High Precision PLC Controlled Semi Automatic Pad Printing Machine With1800-2000PCS/Hour Capacity
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-160S
PLC:
Mitsubishi
Turntable Station:
14
Printing Accuracy:
±0.03mm (depending On Product Accuracy)
Steel Sheet Size:
100mm * 215mm
Print Area:
75mmx75mm
Environmental Oil Cup:
100MM
Working Air Pressure:
0.4~0.6Mpa
Capacity:
Approximately 1800-2000PCS/h
Highlight:
PLC Control Semi Automatic Pad Printing Machine
,High Precision Semi Automatic Pad Printing Machine
Product Description

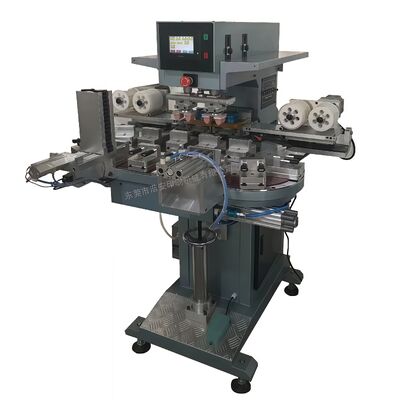

High Precision PLC Controlled Semi Automatic Pad Printing Machine
This semi-automatic pad printing machine features advanced PLC control and digital human-machine interface operation, delivering high precision printing with a capacity of 1800-2000 pieces per hour.
Key Features
- Simultaneous printing of 2 products with precision rotary table drive
- High repetition accuracy with ±0.03mm printing precision
- Fast operation cycle of 4-5 seconds with excellent stability
- Manual feeding with automatic manipulator unloading
- Advanced rubber head cleaning system
- PID controlled hot air system for optimal performance
Technical Specifications
| Component | Specification |
|---|---|
| PLC System | Mitsubishi, Japan |
| Touch Screen | Mitsubishi, Japan |
| Rubber Head Lift Drive | Festo Cylinder, Germany |
| Rubber Head Back-and-Forth Drive | Festo Cylinder, Germany |
| Electromagnetic Valve | SMC, Japan |
| Loading/Unloading System | Cylinder Automatic |
| Rubber Head Cleaning | Motor + Cylinder |
| Feed Photoelectric Switch | Japan |
| Hot Air System | PID Control |
| Turntable Stations | 14 |
| Printing Accuracy | ±0.03mm |
| Fixture (One Out Two) | 4 Models with 6MM 2 Positioning Pins |
| Workpiece Height | 0-60mm |
| Print Area | 75mm x 75mm |
| Steel Sheet Size | 100mm x 215mm |
| Environmental Oil Cup | 100mm |
| Working Air Pressure | 0.4-0.6Mpa |
| Work Cycle | 4-5 Seconds |
| Production Capacity | 1800-2000 PCS/Hour |
| Machine Weight | 350Kg |
| Power Supply | 220V 50/60Hz 2KW |
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are professional manufacturers of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet printing requirements for various shapes and materials across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our machinery is exported to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers. We adhere to core principles of efficiency, excellence, energy conservation, integrity, and win-win partnerships.
With a strong R&D team, we provide customized machinery solutions, professional technical training, and comprehensive support services to ensure customer satisfaction and operational excellence.
Packaging and Shipping
Frequently Asked Questions
Q. How long is the machine's warranty period?
A. We offer a 2-year warranty and long-term service support.
Q. What technical support services are provided after purchase?
A. We provide on-site installation service and professional engineer training.
Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A. In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
Q. What inks does the machine support?
A. The machine supports UV-based environmentally friendly inks and imported eco-friendly ink systems.
Q. What certifications can you provide?
A. We hold ISO9001, SGS, and RoHS certifications for quality and environmental standards.
