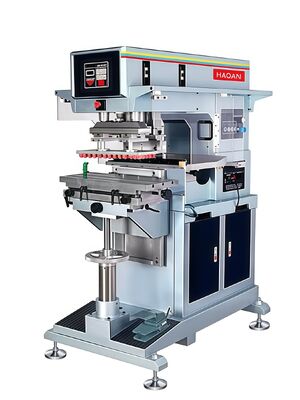

Large Ink Cup Pad Printing Machine Semi Automatic Monochrome Pneumatic Pad Printer
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-161-L
Plate Size:
200*400mm
Printing Area:
150*350mm
The Ink Cup:
250*450mm
Max Workpiece Height:
300 Mm
Drive:
Pneumatic
Power Supply Voltage:
220VAC / 1 Phase
Machine Dimension:
1020*810*1540mm
Printing Color:
1 Color
Highlight:
Large Ink Cup Pad Printing Machine
,Semi Automatic Pneumatic Pad Printer
,Monochrome Pneumatic Pad Printer
Product Description
Large Ink Cup Pad Printing Machine
Semi Automatic Monochrome Pneumatic Pad Printer
Product Overview
The HA-161 Large Oil Pan Pad Printing Machine is a versatile general-purpose printing solution designed for various industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metals, glass, and food packaging.
Key Features
- Photoelectric eye induction for precise positioning
- Stable performance with simple operation
- Built-in 4-digit automatic counter
- Double ink transfer for thicker printing oil film
- Two functional programs: single-cycle and fully automatic printing
- Adjustable delay functions and printing speed
- Aluminum casting with beautiful body structure
- Microelectronic keyboard operation interface
- X, Y, Z axis and angle adjustment workbench
- Special shock absorption for stable operation
- Independent adjustable rubber head stroke and speed
- Alloy cast aluminum body structure - light and firm
Technical Specifications
| Printing Color | 1 Color |
| Printing Speed | 800-1000 Times/Hour |
| Ink Utilization Rate | 98.5% |
| Oil Pan Size | 250×450mm |
| Printing Area | 150×350mm |
| Plate Size | 200×400mm |
| Printing Workpiece Height | 300mm |
| Workpiece Rubber Head Lifting | 10-60mm (Adjustable) |
| Plate Rubber Head Lifting | 10-60mm (Adjustable) |
| Rubber Head Back-and-Forth Stroke | 250mm |
| Drive System | Pneumatic |
| Control Voltage | 12VDC |
| Power Supply | 220VAC / 1 Phase |
| Connection Load | 100W |
| Pneumatic Supply | 6bar |
| Machine Dimensions | 1020×810×1540mm |
| Machine Weight | 360KG |
Safety Features
The HA-161 complies with the latest engineering standards and features an emergency switch that immediately cuts power and returns to initial position when activated. After handling emergencies, simply twist out the switch to resume normal operation.
Operation Notes
- Always cut power and air supply before moving or repairing the machine
- Follow proper procedures when adjusting or cleaning the oil cup
- Maintain fire prevention awareness and equip with appropriate fire-fighting equipment
Manufacturer Information
Dongguan Hao'an Printing Machinery Co., Ltd., established in 2016, specializes in automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our machinery serves various industries worldwide including cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Packaging & Shipping
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported eco-friendly ink solutions.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications for quality and environmental compliance.
