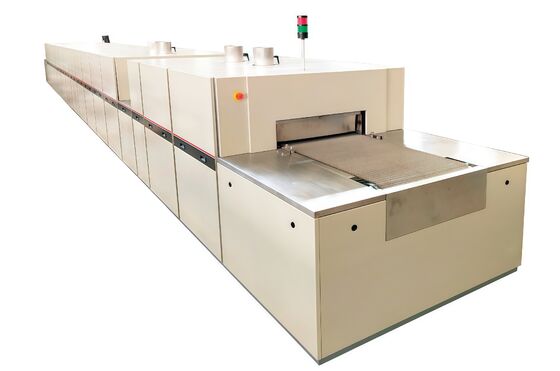

High Temperature Integrated Drying Sintering Furnace With Max Temp 1050℃

Integrated Drying Sintering Furnace With Max Temp 1050℃ And 600mm Mesh Belt

Technical Parameters

1. Equipment Name & Model

HA-60130SJ Integrated Drying and Sintering Furnace

2. Technical Specifications & Basic Configuration

This equipment is mainly used for the high-temperature drying and sintering process of thick-film stainless steel heater products, including the air-atmosphere firing of thick-film resistors, dielectrics, and conductors.

• Rated Temperature: 850℃
• Maximum Temperature: 1050℃
• Effective Height: 130 mm
• Mesh Belt Width: 600 mm
• Mesh Belt Material: Cr20Ni80
• Furnace Structure: Built with ultra-light thermal insulation materials
• Max Load: 50 kg/m² (excluding mesh belt weight)
• Drive System: Large wrap-angle friction drive
• Speed Adjustment Range: 50–300 mm/min; typical reference speed: 150–180 mm/min, stepless speed regulation via inverter
• Heating Elements:
  • Drying zone: Infrared lamps (top and bottom heating)
  • Sintering zone: Ceramic fiber heating plates (top and bottom heating)
• Sintering Atmosphere: Compressed air
• Gas Path: 13 gas inlets, each with adjustable flow (see Section 3.2 for details)
• Exhaust System: 2 exhaust chimneys in preheating and sintering zones
• Cooling Method: Combined insulated cooling + air cooling + water cooling
• Structure: See Section 3.1 for detailed description
• Temperature Control Stability: ±1℃
• Furnace Temperature Uniformity: ±3℃ (at 850℃ constant temperature zone, tested after 2 hours holding)
• Number of Temperature Zones: 12 zones
• Temperature Control Points: 17 points (upper and lower dual-point control for zones 4–8 in sintering section)
• Temperature Measurement Points: 1 point (water temperature detection)
• Thermocouple Type: K-type
• Alarm Indicators: Audible and visual alarms for over-temperature, under-temperature, inverter fault, broken thermocouple, low air pressure, low water pressure
• Power-off Protection: Manual shaking-out device
• Belt Stop Protection: Emergency stop button at inlet and outlet
• Surface Temperature Rise: ＜35℃
• Heating Power: 156 kW
• Empty Furnace Holding Power: ≤52 kW
• Weight: Approx. 5500 kg
• Overall Dimensions (L*W*H): 12950 * 1400 * 1350 mm (excluding chimney and indicator lights)
• Hanging Plate: High-temperature plastic spraying, camel gray computer color
• Furnace Insulation Material: Aluminum silicate refractory fiber board, brand: Shandong Luyang Group

3. General Technical Description

The furnace is mainly composed of four parts: furnace body, atmosphere control system, temperature control system, and drive system.

Furnace Body Design

For detailed layout of the furnace structure, see Figure 1 and Table 1.

Figure 1: Equipment Layout Diagram

Table 1 – Structural Dimensions
