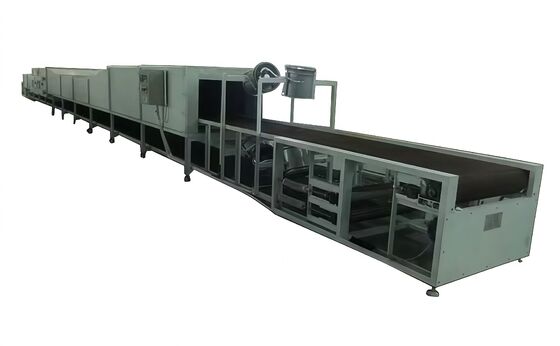

25m Industrial Oven Mesh Belt Furnace With 0‑600℃ Intelligent Control

This machine adopts a fully intelligent control system with variable frequency speed control.

Feeding → Leveling Zone → High Temperature Zone → Leveling Zone → Unloading Zone

Total length of main machine: 25 meters (25000 mm)

1. Insulation Layer

   • Inner & outer board: 1 mm steel plate
   • Support: No.2 square tube
   • High-temperature zone insulation: Aluminum silicate wool, withstands temperature up to 1200℃

2. Furnace Body Structure

   • Adopts thermal expansion automatic correction design, detachable structure
   • Surface: Off-white paint
   • Operating temperature range: 0–600℃

3. Heating System

   • Heating elements: High-temperature & high-pressure molybdenum wires
   • Power: 7 KW per set * 24 sets, total 168 KW (adjustable as required)
   • Specification: 30*800, heat-resistant up to 1200℃

4. Electrical Control Cabinet

   • Control: Variable frequency speed regulation
   • Silicon controlled rectifier: 6 * 250A
   • Intelligent temperature controllers: 3 sets (Model: P909–T901)
   • Protection: 400A leakage circuit breaker + other standard switches

5. High-Temperature Zone

   • Length: 8 meters
   • Inner liner: 1Cr13 stainless steel, 1 mm thickness
   • Main heating zone length: 4 meters
   • Installation: Thermal expansion automatic correction structure

6. Mesh Belt & Support

   • Mesh belt: 750 mm * Φ2.5 * 15*25, material 1Cr13 stainless steel
   • Support mesh: 8*30 flat steel
   • Design: Thermal expansion automatic correction system

7. Overall Dimensions

   • Furnace length: 25 m
   • Outer width: 1.1 m
   • Inner width: 0.8 m
   • Mesh belt height: 750 mm
   • Furnace inner height: 400 mm
   • Main heating zone outer height: 1530 mm

8. Driving System

   • Motor: 2.2 KW, double-stage automatic tensioning device
   • Frame support: No.10 channel steel
   • Connecting angle iron: 45*2 mm
   • Roller: Φ32 water pipe

9. Heating Performance

   • Single zone starting power: 84 KW
   • Heating time: Approximately 50 minutes to reach 580℃
   • Constant temperature power: About 30 KW
   • Control: Fully intelligent temperature control system, automatic power supply based on product heat absorption

• High Temperature Mesh Belt Furnace
• Fully Intelligent Control System
• Variable Frequency Speed Control
• Thermal Expansion Automatic Correction
• 1Cr13 Stainless Steel Mesh Belt
• Industrial High Temperature Heating Furnace
• Energy Saving Constant Temperature Furnace
