Planar Semi Automatic Screen Printer With Automatic Suction Shock Absorption
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-5070AS
Printing Color:
1 Color
Printing Speed:
800-1000 Cycles/hour
Max. Printing Area:
600mm × 800mm
Workpiece Height:
0mm–180mm
Power Supply:
220 VAC, 50/60 Hz
Pneumatic Supply:
6 Bar
Highlight:
Planar Semi Automatic Screen Printer
,SGS Semi Automatic Screen Printer
Product Description

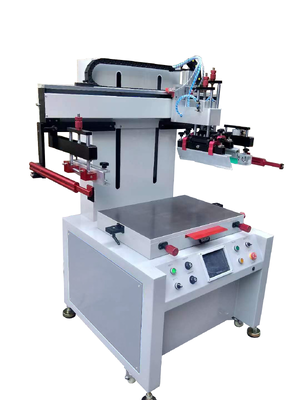

Planar Semi Automatic Screen Printer With Automatic Suction Shock Absorption
The HA-5070AS planar screen printing machine is a versatile general-purpose semi-automatic screen printer featuring automatic suction and shock absorption functions. This high-precision equipment delivers stable performance across various industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metals, glass, light industry, and food packaging.
Key Features
- Motor-controlled positioning with electric eye induction for accurate performance
- Multi-directional worktable fine-tuning (left-right, front-rear, angular) with stable positioning
- Automatic head-start function for easy screen frame disassembly and cleaning
- Guide rail structure for smooth left-right scraper movement, enhancing print quality
- Precision guide rail movement for screen frame lifting with smooth operation
- Automatic screen-lifting function for superior printing results
- Stepping motor and synchronous belt drive for stable scraper operation
- Automatic suction function ideal for thin workpiece printing
- Dual control options: Single-chip Microcomputer or PLC with 7-inch Screen
- Two preset functional programs (single-cycle and full-automatic printing)
- Premium SMC Japan electrical components for smooth power and long service life
- Special shock absorption device for extremely stable machine operation
- Sensitive light touch operation panel with quick response and easy functionality selection
Technical Specifications
| Parameter | Specification |
|---|---|
| Printing Color | 1 Color |
| Printing Speed | 800-1000 times/hour |
| Workbench Area | 600mm * 800mm |
| Maximum Printing Area | 500mm * 700mm |
| Workpiece Height | 0mm - 180mm |
| Screen Frame Lifting Stroke | 200mm |
| Scraper Left-Right Stroke | 700mm |
| Adjustable Screen Frame Lifting | 150mm |
| Automatic Screen-Lifting Stroke | 20mm |
| Scraper & Oil Scraper Up-Down Stroke | 25mm |
| Drive System | Motor |
| Control Voltage | 12VDC |
| Power Supply | 220VAC 50/60Hz |
| Connected Load | 2000W |
| Pneumatic Supply | 6bar |
| Machine Dimensions | 1200mm * 1400mm * 1720mm |
| Weight | Approx. 480Kg |
About Dongguan Hao'an Printing Machinery
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. specializes in manufacturing automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet diverse printing requirements across various shapes and materials, serving industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our machinery is exported to multiple countries including Europe, the United States, South Korea, the Middle East, South Africa, and Mexico, earning trust from domestic and international customers. We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships.
Hao'an maintains a strong professional R&D team capable of customizing machinery according to specific customer requirements. We provide comprehensive technical training and support services, continuously innovating to develop intelligent and efficient printing solutions.
Packaging and Shipping
Frequently Asked Questions
How long is the machine's warranty period?
We offer a comprehensive 2-year warranty with long-term service support.
What technical support services are provided after purchase?
We provide on-site installation services and professional engineer training to ensure optimal operation.
How will you help us resolve after-sales repair issues if the machine malfunctions?
For any machine malfunctions, we offer immediate support through video and email communication, with on-site service available when necessary.
What inks does the machine support?
Our machines support UV-based environmentally friendly inks and imported eco-friendly ink formulations.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications, ensuring quality and environmental compliance.
