Precision Semi Automatic Servo Flatbed Screen Printing Machine For Flat Printing
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-300S
Maximum Printing Area:
200mm × 300mm
Max. Screen Frame Size:
400mm × 600mm
Printing Precision:
±0.02mm (depends On Product Accuracy）
Working Air Pressure:
0.4~0.6 MPa
Capacity:
1500 PCS Per Hour
Power Supply:
220V, 50/60Hz, 1.5KW
Highlight:
Precision Flatbed Screen Printing Machine
,Servo Flatbed Screen Printing Machine
Product Description

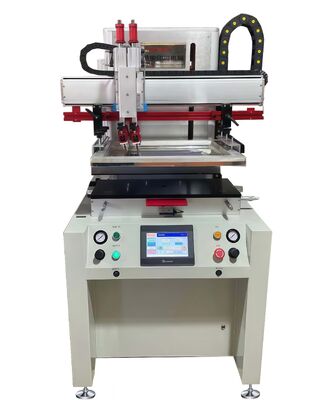

Precision Semi Automatic Servo Flatbed Screen Printing Machine
This industrial screen printing machine features advanced Mitsubishi PLC control and digital human-machine interface operation. Engineered for high repeat positioning accuracy, precise registration, and excellent stability, it delivers consistent printing quality for flat surface applications.
Key Features
- Mitsubishi PLC control system with digital interface
- High repeat positioning accuracy (±0.02mm)
- Servo motor driven vertical lift and left-right motion
- Fast working cycle: 2-3 seconds per print
- Energy-efficient operation with innovative structural design
- Data-based, standardized, and user-friendly operation
- Emergency stop switch and safety reset function
Technical Specifications
| Item | Specification |
|---|---|
| Worktable Size | 250mm * 350mm |
| Max. Printing Area | 200mm * 300mm |
| Max. Screen Frame Size | 400mm * 600mm |
| Printing Precision | ±0.02mm |
| Working Air Pressure | 0.4~0.6 MPa |
| Working Cycle | Approx. 2-3 seconds |
| Capacity | 1500 PCS per hour |
| Net Weight | Approx. 300 Kg |
| Machine Dimensions (L*W*H) | 650 * 750 * 1550 mm |
| Power Supply | 220V, 50/60Hz, 1.5KW |
System Configuration
| Structure | Component | Configuration |
|---|---|---|
| Basic Structure | Frame | Q235A + high-quality square tube |
| Basic Structure | Cover Plate | High-quality cold-rolled plate |
| Screen Lift | Up-down Drive | Mitsubishi servo motor (Japan) |
| Screen Lift | Guide Rail | HIWIN (Taiwan) |
| Left-Right System | Left-right Drive | Mitsubishi servo motor (Japan) |
| Left-Right System | Guide Rail | HIWIN (Taiwan) |
| Squeegee System | Squeegee Drive | Air cylinder (Taiwan) |
| Control System | Control Circuit | Mitsubishi PLC & touch screen (Japan) |
About Manufacturer
Dongguan Hao'an Printing Machinery Co., Ltd., established in 2016, specializes in automated printing equipment manufacturing. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment suitable for various shapes and materials. Our machinery serves multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories, with exports to Europe, the United States, South Korea, the Middle East, South Africa, and Mexico.
We adhere to core principles of efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team provides customized solutions and continuous innovation for intelligent, efficient products. We offer comprehensive technical training and support services to ensure customer satisfaction.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
