Computer Keyboard Semi Automatic Pad Printing Machine PLC Control 220V 50Hz
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-135BS-XSJ
Plate Size:
550mm（L）*200mm（W）
Printing Area:
450mm（L）*160mm（W）
Max Workpiece Height:
450mm
Printing Speed:
600(pcs/hour)
Working Voltage:
220V 50Hz
Machine Dimension:
165（L）*85(W)*168(H)
Highlight:
Keyboard Semi Automatic Pad Printing Machine
,Semi Automatic Pad Printing Machine PLC Control
Product Description

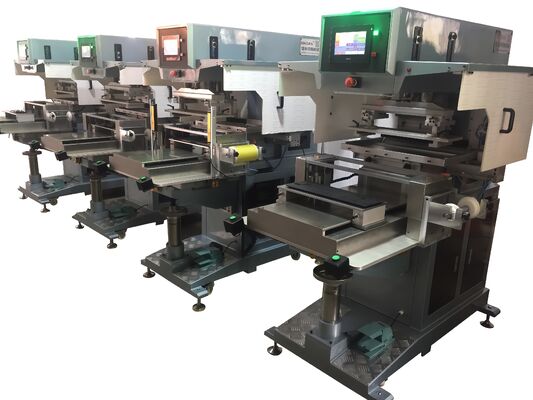

Computer Keyboard Semi Automatic Pad Printing Machine
Professional semi-automatic pad printing machine with Mitsubishi PLC control and FESTO components, specifically designed for computer keyboard printing applications.
Product Characteristics
- Japanese Mitsubishi touch screen operating system and PLC control with German FESTO core components
- Premium imported components including FESTO cylinders, solenoid valves, and cast aluminum parts
- Extra-large oil basin system for convenient ink management and flexible operation
- Workbench with X, Y, Z axis and angle adjustment capabilities
- Wide application range for planes, curved surfaces, and irregular surfaces
- Suitable for computer keyboards, electronics, electrical appliances, hardware, plastics, toys, and stationery industries
Equipment Functions
- Automatic diluent adding function with customizable timing and dosage
- Diluent and ink adding alarm system with visual and audible alerts
- Programmable automatic air blowing function
- Quick mold change compatibility for production line efficiency
- Japanese Mitsubishi servo motors for printing head and workbench movement
- High printing accuracy: ±0.015mm
- Double-button start switch with safety warning labels
- Magnetic induction safety doors on both sides of printing area
- Comprehensive overcurrent protection for AC and DC circuits
- Low working noise: ≤82db (A)
- 3-inch round hole air suction outlet
- Three-color status indicator light
- Standardized gas and circuit diagram layout with clear markings
Premium Components
- Linear Bearing: NSK or THK
- Linear Slide Rail: NSK or THK
- Sensor: RIKO, FESTO or SMC
- Pneumatic Components: FESTO/SMC brand cylinders
- Servo Motor and Driver: Mitsubishi, Panasonic brands
- PLC: Mitsubishi, Panasonic brands
- Human-Machine Interface: Mitsubishi, Weinview 7-inch touch screen
Technical Specifications
| Maximum steel plate size | 550mm(L) × 200mm(W) |
| Maximum printed area | 450mm(L) × 160mm(W) |
| Production velocity | 600 pieces/hour |
| Length of rubber head beam | 450mm |
| Oil basin specifications | 580mm(L) × 500mm(W) |
| Working air pressure | 6±1kgf/cm² |
| Working voltage | 220V 50Hz |
| Weight | 480kg |
| Dimensions | 165cm(L) × 85cm(W) × 168cm(H) |
About Manufacturer
Dongguan Hao'an Printing Machinery Co., Ltd., established in 2016, is a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet diverse printing requirements across various materials and shapes.
Our machinery is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers. We adhere to the core principles of efficiency, excellence, energy conservation, integrity, and win-win cooperation.
With a strong R&D team, we provide customized technical solutions and professional training services, continuously innovating to deliver intelligent and efficient printing equipment.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported eco-friendly ink solutions.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications for quality assurance and environmental compliance.
