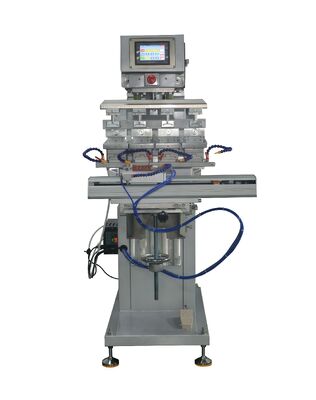

4 Color Servo Direct Push Pad Printing Machine
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-160P-S4
Output:
12pcs/min
Max Print:
75*110mm
Plates Size:
100*150 Mm
Power:
AC220V 50-60Hz 1100W
Air Pressure:
5-7bar
Dimensions:
115*75*152 Cm
Approximate Weight:
180Kg
Color:
4 Color
Highlight:
4 color servo pad printer
,direct push pad printing machine
,semi automatic servo printer
Product Description
4 Color Servo Direct Push Pad Printing Machine
This advanced pad printing machine is specifically engineered for multi-color helmet printing, accommodating 1-4 color printing requirements with precision and efficiency.
Product Features
This specialized pad printing series offers comprehensive multi-color printing capabilities for helmet manufacturing and other applications. Key features include:
- Choice of oil basin or oil cup ink supply systems
- Touch screen control interface with Chinese & English language support
- Imported PLC control system for reliable operation
- Independent silicone pad stroke and speed adjustment
- Japan SMC solenoid valves for enhanced durability
- Optional hot air drying system available
- Aluminum alloy die-cast construction with upper/lower and front/rear cylinders
- Inovance servo motor with three-axis servo control
- 0-360° adjustable rotation angle worktable
- Versatile printing on flat, curved, irregular, and multi-surfaces
Ideal for automotive parts, electronics, appliances, hardware, plastics, toys, stationery, and various industrial applications.
Construction & Manufacturing Process
Heavy-duty square tube frame ensures structural stability with painted surface for corrosion resistance and aesthetic appeal. Machine housing features cast aluminum construction with CNC-processed, oxidized components for superior durability and appearance.
Ink Supply Systems
- Oil Basin System: Large printing area, easy installation and removal, flexible operation - simply pour prepared ink directly into the basin
- Oil Cup System: Environmentally friendly, energy efficient, and aesthetically pleasing design
Worktable & Servo Motor Capabilities
- Servo-controlled left/right movement with guide rail system
- 0-360° left/right rotation via servo motor
- 360° forward/backward rotation capability
Control System
Mitsubishi PLC control with intuitive touch screen operation interface for precise machine management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Capacity | 12 pieces/minute |
| Maximum Print/Plate Size | 75×110mm / 100×150mm |
| Power Requirements | AC220V 50-60Hz 1100W |
| Air Pressure | 5-7 bar |
| Dimensions | 115×75×152 cm |
| Weight | 180 kg |
About Hao'an Printing Machinery
Dongguan Hao'an Printing Machinery Co., Ltd., established in 2016, specializes in automated printing equipment manufacturing. Our product range includes screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed for various materials and shapes.
Our machinery serves diverse industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories, with exports to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other global markets.
We operate under five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team creates customized solutions tailored to specific customer requirements, continuously innovating to enhance product intelligence and performance.
Beyond equipment supply, we provide comprehensive technical training and ongoing support services to ensure optimal customer satisfaction.
Frequently Asked Questions
Q. How long is the machine's warranty period?
A. We offer a 2-year warranty with long-term service support.
Q. What technical support services are provided after purchase?
A. We provide on-site installation services and professional engineer training.
Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A. For machine malfunctions, we provide video support and email communication, with on-site service available when necessary.
Q. What inks does the machine support?
A. The machine supports UV-based environmentally friendly inks and imported eco-friendly ink formulations.
Q. What certifications can you provide?
A. We hold ISO9001, SGS, and RoHS certifications for quality and environmental compliance.
