Haoan Semi Automatic Pad Printing Machine For Electronics And Electrical Appliances
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-133E
Plate Size:
100*300 Mm
Printing Area:
70*160 Mm
Max Workpiece Height:
200 Mm
Print Speed:
800 Pcs/hour
Power:
110V/220V 50/60HZ, 40W, 6Bar
Dimension:
1600*1550*1690 Mm
Printing Color:
6 Colors
Machine Weight:
640 Kg
Highlight:
semi automatic pad printing machine for electronics
,electrical appliances pad printing machine
,Haoan semi automatic printing machine
Product Description

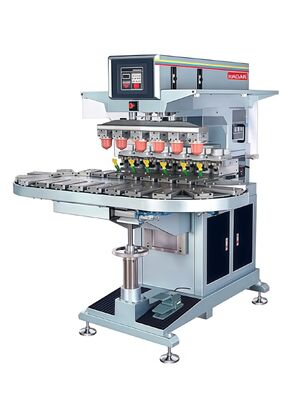

Haoan Semi Automatic Pad Printing Machine For Electronics And Electrical Appliances
This semi-automatic pad printing machine is specifically engineered for multi-color printing applications, capable of handling up to 6-color printing processes with precision and efficiency.
Product Features
- Specialized multi-color printing capability (up to 6 colors)
- Oil cup type ink supply system for efficient operation
- Microelectronic keyboard control operation interface
- Independent print head down stroke and speed control
- X, Y, Z axis and angle adjustment worktable
- Wide application range with high printing efficiency
- Suitable for various surfaces including flat, curved, and irregular shapes
- Ideal for electronics, electrical appliances, hardware, plastic, toys, and stationery industries
Construction & Build Quality
The machine frame is constructed from thickened, solid square tubes with a lacquered, bright surface finish. The chassis utilizes cast aluminum components, while accessories are precision-processed using CNC technology and oxidation treatment for enhanced durability and aesthetic appeal.
Oil Supply System
The economical and environmentally friendly cup-type oil supply system minimizes ink waste and odor volatilization. Featuring imported ceramic cup rings with extended service life, the system maintains stable ink concentration even during prolonged storage in the oil cup.
Multi-Color Rotary Belt Worktable
Constructed from die-cast aluminum alloy for superior durability, the multi-color rotary belt worktable incorporates abrasive-grade slide tracks and innovative positioning design to ensure precise multi-color registration. German-quality precision pneumatic components provide robust power, while specialized push systems and shock absorbers guarantee stable, reliable operation with smooth, accurate, and highly efficient printing performance.
Technical Specifications
| Specification | Value |
|---|---|
| Plate Size | 100 × 300 mm |
| Printing Area | 70 × 160 mm |
| Maximum Print Height | 200 mm |
| Printing Colors | 6 Colors |
| Print Speed | 800 pieces/hour |
| Power Requirements | 110V or 220V, 50/60HZ, 60W, 6Bar |
| Dimensions | 1600 × 1550 × 1690 mm |
| Weight | 640 kg |
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment. Our comprehensive product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet diverse printing requirements across various shapes and materials.
Our machinery serves multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. With exports reaching Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, we have earned the trust of domestic and international customers worldwide.
We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our dedicated research and development team creates customized machinery solutions tailored to specific customer requirements, continuously innovating to enhance product intelligence and efficiency. Beyond equipment provision, we offer comprehensive technical training and support services to ensure complete customer satisfaction.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a comprehensive 2-year warranty with long-term service support.
What technical support services are provided after purchase?
We provide on-site installation services and professional engineer training to ensure optimal machine operation.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide immediate support through video communication and email correspondence. On-site service is available when necessary to resolve issues promptly.
What inks does the machine support?
Our machines are compatible with UV-based environmentally friendly inks and imported eco-friendly ink formulations.
What certifications can you provide?
We maintain ISO9001, SGS, and RoHS certifications, ensuring quality standards and regulatory compliance.
