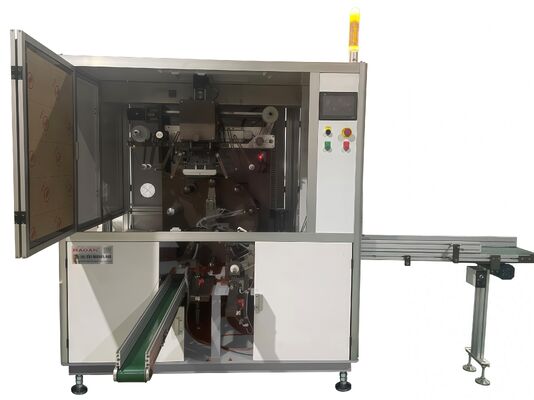

Automatic Heat Transfer Printing Machine For Tubes And Containers

This machine is specially designed for cylindrical hot stamping and is compatible with a wide range of container materials, including plastic tubes, plastics, glass, metals, and more.

The machine adopts PLC (Programmable Logic Controller) and high-performance touch screen for intelligent control of the whole system. Equipped with high-quality imported motors, variable speed devices and precision mechanical transmission, it forms an advanced high-speed transmission system, achieving functions such as stepless speed regulation, synchronous conveying, automatic positioning, and no-bottle no-stamping.

• Feeding mode (material sorting machine available upon customer request)
• Automatic feeding function
• Static dust removal system
• Stepless speed control system (inverter control)
• Automatic pre-positioning system
• Foil film detection sensor
• No-product no-stamping system & automatic hot stamping
• Automatic unloading function

• Main reduction motor: MOTOVARIO (Italy)
• PLC (Programmable Logic Controller): OMRON (Japan)
• Touch Screen: OMRON (Japan)
• Photoelectric sensors: YAMATA (Japan) / SICK (Germany)
• Push buttons: IDEC (Japan)
• Contactors: Schneider
• Relays: OMRON (Japan)
• Inverter: OMRON (Japan)
• Pneumatic components: SMC (Japan)

• Cylindrical stamping diameter: φ20 mm ~ φ60 mm
• Cylindrical product height: 40 mm ~ 240 mm
• Max. stamping speed: 22–40 pcs/min (for cylindrical products)
• Power supply: AC 380V, 50Hz / 60Hz, 5kW
• Rated power: Main machine 7.5kW
• Air pressure: 5–8 bar
• Machine dimension: approx. 4800(L) * 3800(W) * 2000(H) mm (subject to actual machine)
• Net weight: approx. 2500 kg

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
