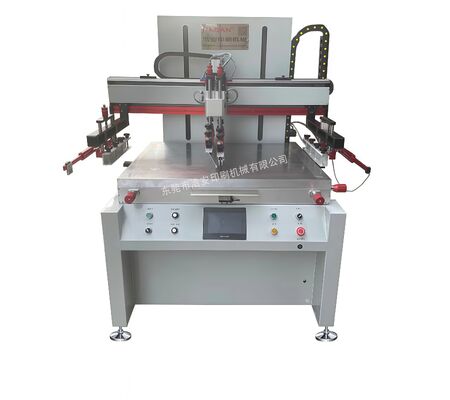

Semi Automatic Screen Printing Machine With Automatic Suction And SMC Electrical Components
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-6090AS
Printing Color:
1 Color
Printing Speed:
800-1000 Times/hour
Max. Printing Area:
700mm × 1000mm
Workpiece Height:
0mm - 100mm
Power Supply:
220 VAC, 50/60 Hz
Pneumatic Supply:
6 Bar
Highlight:
semi automatic screen printing machine
,flatbed screen printing machine with suction
,screen printing machine with SMC components
Product Description
Semi Automatic Screen Printing Machine With Automatic Suction And SMC Electrical Components
The HA-6090 planar screen printer is a high-quality general-purpose flat screen printing machine designed for precision, stability, and ease of operation. This versatile equipment provides reliable printing solutions for small to medium-sized workpieces across various industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry, and food packaging.
Key Features
- Motor-controlled positions with electric eye induction for accurate positioning
- Worktable with fine adjustment capabilities in left-right, front-rear, and angle directions
- Automatic head-start function for easy screen frame disassembly and cleaning
- Guide rail structure for scraper left-right movement with smooth operation
- Guide rail movement structure for screen frame lifting with high precision
- Automatic screen-lifting function to enhance printing quality
- Stepper motor and synchronous belt drive for stable scraper operation
- Automatic air suction function suitable for printing thin workpieces
- PLC-controlled system with stable overall performance
- Two preset functional programs: single-cycle printing and full-automatic printing
- Japanese SMC electrical components for smooth, strong, and durable power
- Special shock absorption device for extremely stable machine operation
- Sensitive light touch control panel with quick response and easy operation
Technical Specifications
| Item | Specification |
|---|---|
| Printing Color | 1 Color |
| Single Cycle | Available |
| Continuous Operation | Available |
| Item Counting | Available |
| Speed Regulation | Available |
| Delay of Each Part | Available |
| Printing Speed | 800-1000 times/hour |
| Workbench Area | 700mm × 1000mm |
| Maximum Printing Area | 600mm × 900mm |
| Workpiece Height | 0mm - 100mm |
| Screen Frame Lifting Stroke | 200mm |
| Scraper Left-Right Stroke | 900mm |
| Adjustable Screen Frame Lifting | 180mm |
| Automatic Screen-Lifting Stroke | 20mm |
| Scraper & Oil Scraper Up-Down Stroke | 25mm |
| Drive | Motor |
| Control System | PLC |
| Control Voltage | 12VDC |
| Power Supply Voltage | 220VAC 50/60Hz |
| Connected Load | 220W |
| Pneumatic Supply | 6bar |
| Machine Overall Dimension | 1150mm × 1350mm × 1680mm |
| Weight | About 500Kg |
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet printing requirements for various shapes and materials. Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, and automotive accessories industries, and is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions.
We adhere to the core concepts of efficiency, excellence, energy conservation, integrity, and win-win cooperation. Our strong professional R&D team can customize machinery according to specific customer requirements and continuously innovate to make products intelligent and efficient. Beyond providing excellent equipment, we offer professional technical training and comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
Our machines support UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications.
