Industrial Semi Automatic Flat Screen Printing Machine For Packaging Can Surface Printing
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-5070
Printing Color:
1 Color
Printing Speed:
800-1000 Cycles/hour
Max. Printing Area:
600mm × 800mm
Workpiece Height:
0mm–180mm
Power Supply:
220 VAC, 50/60 Hz
Pneumatic Supply:
6 Bar
Highlight:
Industrial Flat Screen Printing Machine
,Can Flat Screen Printing Machine
Product Description

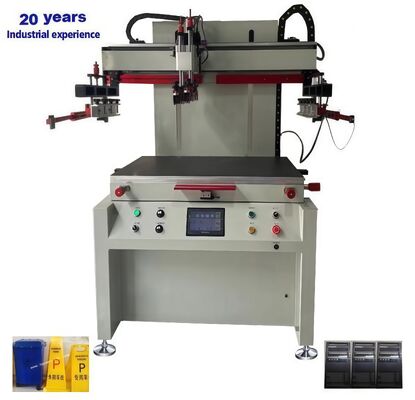

Industrial Semi Automatic Flat Screen Printing Machine
Universal flat screen printer designed for packaging can surface printing and industrial applications across various materials and products.
Product Overview
The HA-5070 Flat Screen Printing Machine is engineered with the latest standards for industrial printing on daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry products, food packaging and many other surfaces.
Key Features
- Motor-controlled motions with electric eye induction for high positioning accuracy
- Worktable with micro-adjustment in left-right, front-back and angle directions
- Automatic frame lifting for easier screen frame removal and cleaning
- Guide rail structure for smooth squeegee left-right movement
- Precision guide rail structure for screen frame lifting
- Automatic screen release function for superior printing quality
- Stepping motor and synchronous belt drive for squeegee movement
- Automatic vacuum suction suitable for thin workpiece printing
- Control system options: Standard single-chip or PLC control with 7-inch touch screen
- Two preset working modes: single-cycle and fully automatic printing
- Japanese SMC electrical components for durable power performance
- Special shock-absorbing design for stable machine operation
- Sensitive touch control panel for fast response and convenient operation
Technical Specifications
| Printing Color | 1 color |
| Printing Speed | 800-1000 cycles/hour |
| Worktable Area | 600mm × 800mm |
| Max Printing Area | 500mm × 700mm |
| Workpiece Height | 0mm-180mm |
| Screen Frame Lifting Stroke | 200mm |
| Squeegee Left-Right Stroke | 700mm |
| Adjustable Screen Frame Lifting | 150mm |
| Automatic Screen Release Stroke | 20mm |
| Squeegee & Ink Knife Up-Down Stroke | 25mm |
| Drive System | Motor |
| Control Voltage | 12VDC |
| Power Supply | 220VAC 50/60Hz |
| Connected Load | 2000W |
| Air Supply | 6bar |
| Machine Dimensions | 1200mm × 1400mm × 1720mm |
| Net Weight | Approx. 400Kg |
Manufacturer Profile
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment capable of meeting printing requirements for various shapes and materials.
Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, and automotive accessories industries, and exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers.
We adhere to five core concepts: efficiency, excellence, energy conservation, integrity, and win-win, committed to providing suitable and excellent technical solutions. With a strong R&D team, we customize machinery according to customer requirements and provide professional technical training and support services.
packaging and shipping
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
