Semi Automatic Planar Screen Printing Machine With PLC Control And SMC Electrical Components
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-3050AS
Printing Color:
1 Color
Printing Speed:
800-1000 Times/Hour
Workbench Area:
400mm × 600mm
Maximum Printing Area:
300mm × 500mm
Workpiece Height:
0mm - 180mm
Power Supply Voltage:
220VAC 50/60Hz
Highlight:
semi automatic screen printing machine
,PLC control screen printing machine
,SMC electrical screen printer
Product Description

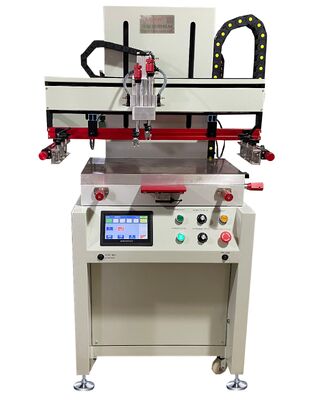

HA-3050AS Semi Automatic Planar Screen Printing Machine
The HA-3050AS planar screen printing machine is a high-quality general-purpose planar screen printer, widely applicable in various industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry, and food packaging. It integrates precision, stability, and ease of operation, making it an ideal choice for small to medium-sized printing tasks.
Key Features
- Motor-controlled positions with electric eye induction for accurate positioning
- Workbench with fine-tuning capabilities (left-right, front-rear, angle adjustment)
- Automatic head-start function for easy screen frame removal and cleaning
- Guide rail structure for scraper movement ensuring smooth operation
- Guide rail movement structure for screen frame lifting with high precision
- Automatic screen lifting function for enhanced printing quality
- Stepping motor and synchronous belt drive for stable scraper operation
- Automatic suction function suitable for printing thin workpieces
- Two control system options: Standard Microcontroller or PLC Control with 7-inch Screen
- Two preset functional programs (single-cycle and full-automatic printing)
- SMC Japan electrical components for smooth power output and long service life
- Special shock absorption device for extremely stable machine operation
- Sensitive light touch operation panel with quick response
Technical Specifications
| Specification | Details |
|---|---|
| Printing Color | 1 Color |
| Operation Modes | Single Cycle, Continuous Operation |
| Printing Speed | 800-1000 Times/Hour |
| Workbench Area | 400mm × 600mm |
| Maximum Printing Area | 300mm × 500mm |
| Workpiece Height | 0mm - 180mm |
| Screen Frame Lifting Stroke | 200mm |
| Scraper Left-Right Stroke | 500mm |
| Adjustable Screen Frame Lifting | 150mm |
| Automatic Screen Lifting Stroke | 20mm |
| Scraper & Oil Scraper Up-Down Stroke | 25mm |
| Drive System | Motor |
| Control System Options | Microcontroller / PLC |
| Operation System Options | 7-inch Screen / Touch Screen |
| Control Voltage | 12VDC |
| Power Supply Voltage | 220VAC 50/60Hz |
| Connected Load | 2000W |
| Pneumatic Supply | 6bar |
| Machine Dimensions | 900mm × 1150mm × 1600mm |
| Weight | Approx. 300Kg |
Manufacturer Information
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, designed to meet printing requirements of various shapes and materials. Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, and automotive accessories industries, and is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions.
We adhere to the core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable technical solutions. Our professional R&D team can customize machinery according to specific customer requirements, ensuring continuous innovation for intelligent and efficient products. We provide not only excellent equipment but also professional technical training and comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
Our machines support UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications.
