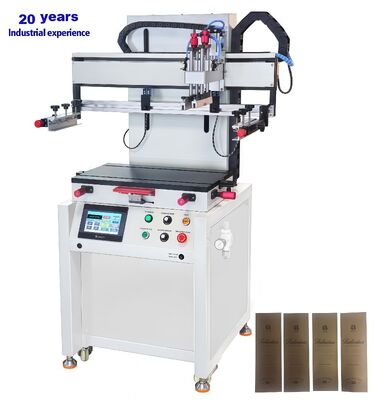

Electric Flat Screen Printing Machine Semi Auto For PCB Glass LCD Panels
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | Wooden Box |
| Delivery Period: | According To Customer Needs |
| Payment Method: | T/T |
| Supply Capacity: | 30set/month |
Detail Information
Place of Origin
Guangdong,China
Brand Name
HAOAN
Certification
ISO9001,SGS, RoHS
Model Number
HA-3050
Printing Surface:
Flat
Printing Color:
Single Color Printing
Workbench Area:
350*600mm
Maximum Screen Frame Size:
500*800mm
Maximum Printing Area:
300*500mm
Printing Speed:
800-1000 Times/Hour
Power Requirement:
220V 50/60HZ/ 1000W
Air Pressure:
5—7BAR
Highlight:
Electric Flat Screen Printing Machine
,Flat Screen Printing Machine Semi Auto
Product Description
Electric Semi-Automatic Flat Screen Printing Machine for PCB, Glass, and LCD Panels
The HA-3050 is a professional electric high-precision flat screen printing machine designed for stable, fast, and accurate printing on various planar materials. Controlled by a variable frequency motor, it features sensitive response, fast running speed, and precise starting and reciprocating movement, making it an ideal choice for industrial printing applications.
Key Features
- Variable Frequency Motor Control: Ensures sensitive response, fast operation, and precise movement for improved printing efficiency
- Pneumatic Vertical Movement: Air cylinder-controlled tool holder provides elastic and uniform printing pressure
- High Printing Precision: ±0.05MM accuracy with speeds up to 1500 times per hour
- Multiple Operation Modes: Manual, semi-automatic, and fully automatic modes with digital interval control
- Independent Printing Head Lifting: Facilitates easy ink scraping, screen loading/unloading, and cleaning
- Full Machine Encapsulation: Enhanced safety with maintenance-free operation
- Guide Rail Sliding Structure: High precision and stable operation for all movements
- Constant Pressure Scraper Device: Maintains consistent printing quality
- Adjustable Scraper/Ink Return Knife: Freely adjustable angles for different materials
- High-Precision Fine-Tuning Workbench: 0.01MM adjustment accuracy with self-locking device
- Adjustable Screen Frame Position: Adaptable to different printing sizes
- Pneumatic Lifting Printing Head: Convenient screen access and cleaning
- High-Strength Stainless Steel Suction Workbench: Precision-ground for accurate multi-color overprinting
- Emergency Stop Device: Workbench safety feature to prevent accidents
- Two Workbench Options: T-slot or air suction for different material requirements
Applications
The HA-3050 electric flat screen printing machine is suitable for printing on various planar materials including PCB boards, electrical appliances, electronic components, silica gel, textiles, plastic keys, PET materials, cardboard, nameplates, trademarks, IC boards, membrane switch circuits, mobile phone lenses, glass, LCD panels, and signs.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Name | HA-3050 Precision Electric Heightened Flat Screen Printing Machine |
| Model | HA-3050 (T-slot), HA-3050 (Air Suction) |
| Printing Surface | Flat |
| Printing Color | Single Color Printing |
| Starting Method | Button Switch, Touch Screen, Foot Switch |
| Left-Right Stroke | 500mm |
| Up-Down Stroke | 160mm |
| Workbench Area | 350*600mm |
| Maximum Screen Frame Size | 500*800mm |
| Maximum Printing Area | 300*500mm |
| Maximum Workpiece Height | 250mm |
| Printing Speed | 800-1000 Times/Hour |
| Power Requirement | 220V 50/60HZ/ 1000W |
| Air Pressure | 5-7BAR |
| Machine Dimension | 800*1050*1700mm |
| Weight | 220KG |
Why Choose HA-3050?
The HA-3050 combines high precision, efficiency, and easy operation, making it suitable for various industrial printing scenarios. With variable frequency motor control, stable printing performance, and multiple adjustable functions, it meets diverse material and printing requirements. The full machine encapsulation ensures safety and maintenance-free operation, while the user-friendly interface and flexible operation modes improve production efficiency and reduce labor costs.
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are professional manufacturers of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our products serve various industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories, and are exported to Europe, the United States, South Korea, the Middle East, South Africa, and Mexico.
We adhere to the core concepts of efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team can customize machinery according to customer requirements and provide comprehensive technical training and support services.
Packaging and Shipping
Frequently Asked Questions
Q. How long is the machine's warranty period?
A. We offer a 2-year warranty and long-term service.
Q. What technical support services are provided after purchase?
A. We provide on-site installation service and professional engineer training.
Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
A. In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
Q. What inks does the machine support?
A. We use UV-based environmentally friendly inks and imported environmentally friendly inks.
Q. What certifications can you provide?
A. We have ISO9001, SGS, and RoHS certifications.
