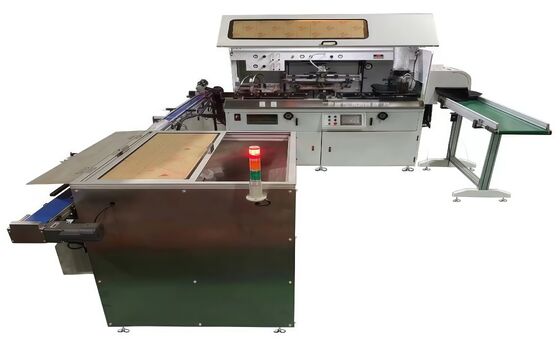

High Speed Arc Surface Automatic Screen Printing Machine For Cylindrical / Elliptical Containers

This arc surface printing machine is designed to meet the printing needs of arc surfaces for cylindrical, elliptical cylindrical, and other shaped containers. It is compatible with containers made of various materials, including plastic, glass, and metal.

Equipped with a programmable logic controller (PLC) and a high-performance touch screen, the machine realizes full intelligent operation. A new high-speed transmission system, composed of advanced imported motors, transmission devices, and mechanical transmissions, enables multiple control functions such as stepless speed change, synchronous transmission, automatic alignment, and no-bottle no-printing.

• Suitable for inclined platform feeding conveyor belt and automatic feeder feeding
• Automatic turning function for loading
• Flame surface treatment system
• Stepless speed change control system (inverter control)
• Automatic pre-alignment system
• No-bottle no-printing system (adopting high-performance photoelectric sensors, which can reliably identify both transparent and black bottles)
• UV curing system (HONOVIA, Hanover, USA)

• Machine main motor: SITI (Italy)
• Programmable Logic Controllers (PLCs): OMRON/Panasonic (Japan)
• Touchscreen: WECON (China)
• Photoelectric switch: OMRON (Japan)
• Button switch: NHD (Taiwan)
• Contactors: SCHNEIDER
• Relays: OMRON (Japan)
• Inverter: Panasonic (Japan)
• UV curing system: HONOVIA (Hanover, USA)
• Pneumatic components: SMC (Japan)/AirTAC

• Circular printing diameter: ф20mm ~ ф100mm (depending on actual products)
• Circular printing height: 20mm ~ 270mm
• Flat printing radius: R20mm ~ R180mm
• Flat printing height: 20mm ~ 270mm
• Maximum printing speed: 3000-3600Pcs/hour for circular products; 3000-4000Pcs/hour for flat bottles
• Power Requirements: AC380V 3Phase 50Hz / 60Hz
• Rated power: Main unit 7.5KW, auxiliary unit 6KW
• Air pressure requirement: 5-8 bar
• Machine size: Approximately (L2700*W2000*H2100mm) + (L2400*W1350*H1600mm) (subject to actual product)
• Export wooden case size: Approximately (L2900*W2300*H2250mm) + (L2500*W1450*H1750mm) (subject to actual product)
• Mechanical weight: 1500KG
• Wooden case weight: 220KG

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
