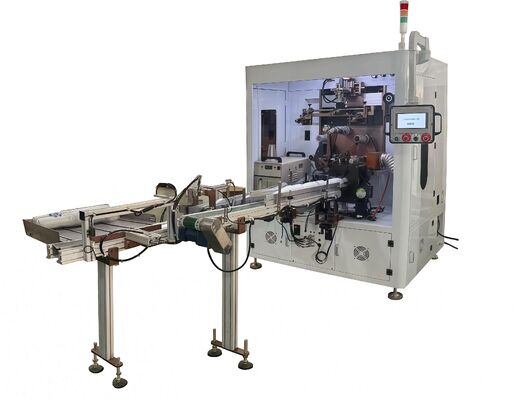

Cylindrical Conical Rotary Screen Printing Machine Automatic Plastic Glass Cup Screen Printer

This cylindrical and conical curved surface printing machine is designed to meet the printing needs of curved surfaces, compatible with containers made of plastic, glass and other materials. It realizes intelligent control of the entire machine operation through a programmable controller (PLC) and a high-performance touch screen.
Equipped with a brand-new high-speed transmission system composed of advanced imported motors, speed control devices and mechanical transmission, the machine supports stepless speed regulation, synchronous transmission, automatic alignment, no printing without bottles and other practical control functions, improving printing efficiency and quality.

• Feeding conveyor belt for stable and continuous material supply
• Automatic feeding function to save labor costs
• Flame surface treatment system (corona treatment, plasma optional) to enhance printing adhesion
• Stepless speed control system (controlled by frequency converter) for flexible speed adjustment
• Automatic pre-positioning system to ensure accurate printing position
• No-bottle no-printing system: adopts high-performance photoelectric sensors, which can reliably identify both transparent and black bottles, avoiding material waste
• LEDUV ultraviolet curing system for fast and environmentally friendly curing, ensuring printing durability

• Main motor: SITI (Italy) and TANBO, stable and durable
• Programmable Controller (PLC): XJIE and PANASONIC, high stability and strong anti-interference ability
• Touchscreen: WILUN, easy to operate and clear display
• Photoelectric Switch: KEYENCE, high sensitivity and accurate detection
• Button Switch: IDEC, safe and reliable, long service life
• Contactor: SCHNEIDER, stable contact and strong load capacity
• Relay: OMRON, high precision and reliable performance
• Frequency Converter: OMRON, smooth speed regulation and energy saving
• UV Curing System: LED, energy-saving, environmentally friendly and fast curing
• Pneumatic Components: SMC and YADECHE, stable performance and long service life

• Circular Printing Diameter: φ50mm - φ100mm (determined based on the actual product)
• Circular Printing Height: 50mm - 180mm
• Fastest Printing Speed: Approximately 2700 - 3600 Pcs/hour
• Power Requirements: AC380V 3Phase 50Hz / 60Hz
• Rated Power: Main unit 5KW
• Air Pressure Requirements: 5 - 8 bar
• Machine Dimensions: Approximately L2700 * W1750 * H2100MM (exact dimensions based on the actual product)
• Export Carton Dimensions: Approximately L2900 * W2400 * H2250 (exact dimensions based on the actual product)
• Mechanical Weight: 1000KG
• Carton Weight: 300KG

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.
We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period?

  A.We offer a 2-year warranty and long-term service

• Q. What technical support services are provided after purchase?

  A.We provide on-site installation service and professional engineer training

• Q. How will you help us resolve after-sales repair issues if the machine malfunctions?

  A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary

• Q. What inks does the machine support?

  A.We use UV-based environmentally friendly inks, imported environmentally friendly inks

• Q.What certifications can you provide?

  A.We have ISO9001, SGS, and RoHS certifications
