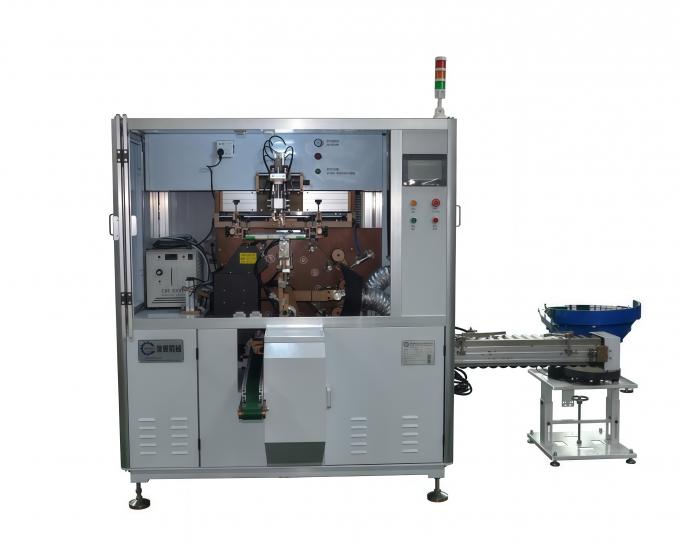

Medical Industry Single Color Screen Printing Machine Automatic With LED UV Ink

This single-color automatic screen printing machine is specifically engineered for medical industry product printing. Unlike customized machines such as micro regulator fully automatic screen printing machines, this model is purpose-built for medical product applications. It utilizes LED UV environmentally friendly ink and features a Panasonic PLC control system, Omron electrical components, SMC solenoid valves, a Taiwan Deshi high-precision splitter, an Italian motor, a fully mechanical transmission system, and a mechanical pre-positioning system. It delivers fast printing speeds, stable and reliable quality, and convenient, quick debugging.

1. The operator pours the product into the vibrating tray for automatic feeding (the vibrating tray is used for packaging).
2. Equipped with a product direction detection system with automatic product turning function to ensure correct printing orientation.
3. The robotic arm push rod automatically pushes the product onto the fixture rod, reducing manual operation and improving efficiency.
4. Adopts a dual positioning structure: mechanical pre-positioning (1) and printing positioning (2), achieving a high-precision positioning effect.
5. The rotary drive mainly uses a combination of dividers and encoders, which can accurately divide and allocate the motion timing of each mechanism, making the machine run more stably, efficiently, and safely.
6. Adopts LED UV curing technology, which is environmentally friendly, energy-saving, and power-saving.

After the product screen printing is completed, the robotic arm automatically unloads the material and places it on the discharge conveyor belt, forming a fully automatic production process.

1. 7-inch touch screen (Taiwan) — easy to operate and debug.
2. PLC: Panasonic (Japan) — ensuring stable and reliable control performance.
3. Turntable operation: driven by a divider (Taiwan Deshi) — realizing precise rotation and positioning.
4. Printing mechanism: fully mechanically linked, equipped with optoelectronics (Germany) — ensuring smooth and accurate printing action.
5. Left and right ball screw (Japan) — running more smoothly and improving the stability of the printing mechanism.
6. 12-shaft tube seat: composed of tight NSK bearings and imported hard shafts (Japan) — with high durability and precision.
7. Main drive: equipped with Italian Modori reducer and motor, controlled by Omron frequency converter (Italy and Japan) — realizing stepless speed regulation and stable power output.
8. Product loading and unloading machine: mechanical operation, smoother and more accurate (Japan) — reducing product damage during loading and unloading.
9. Ball screws and guide rails: both are Japanese THK brand — with higher precision and longer service life, adapting to long-term continuous production.
10. Curing system: LED UV lamps (HAOAN) — environmental protection and energy saving.
11. Pneumatic system: SMC (Japan) / AirTAC (Taiwan) — making the printing quality more stable.
12. Structural design: the main structural design is more reasonable, and the mechanical positioning method can realize stable and efficient production.
13. Gears and racks: high-quality products from Japan — ensuring smooth transmission and long service life.
14. Printing positioning mechanism: driven by the main motor and cam, perfectly matching the speed of the host without separate adjustment. (Note: The speed of the cylinder should be adjusted according to the speed of the main engine, and the retraction angle should be adjusted accordingly; there is a possibility of collision due to the influence of the air source.)
